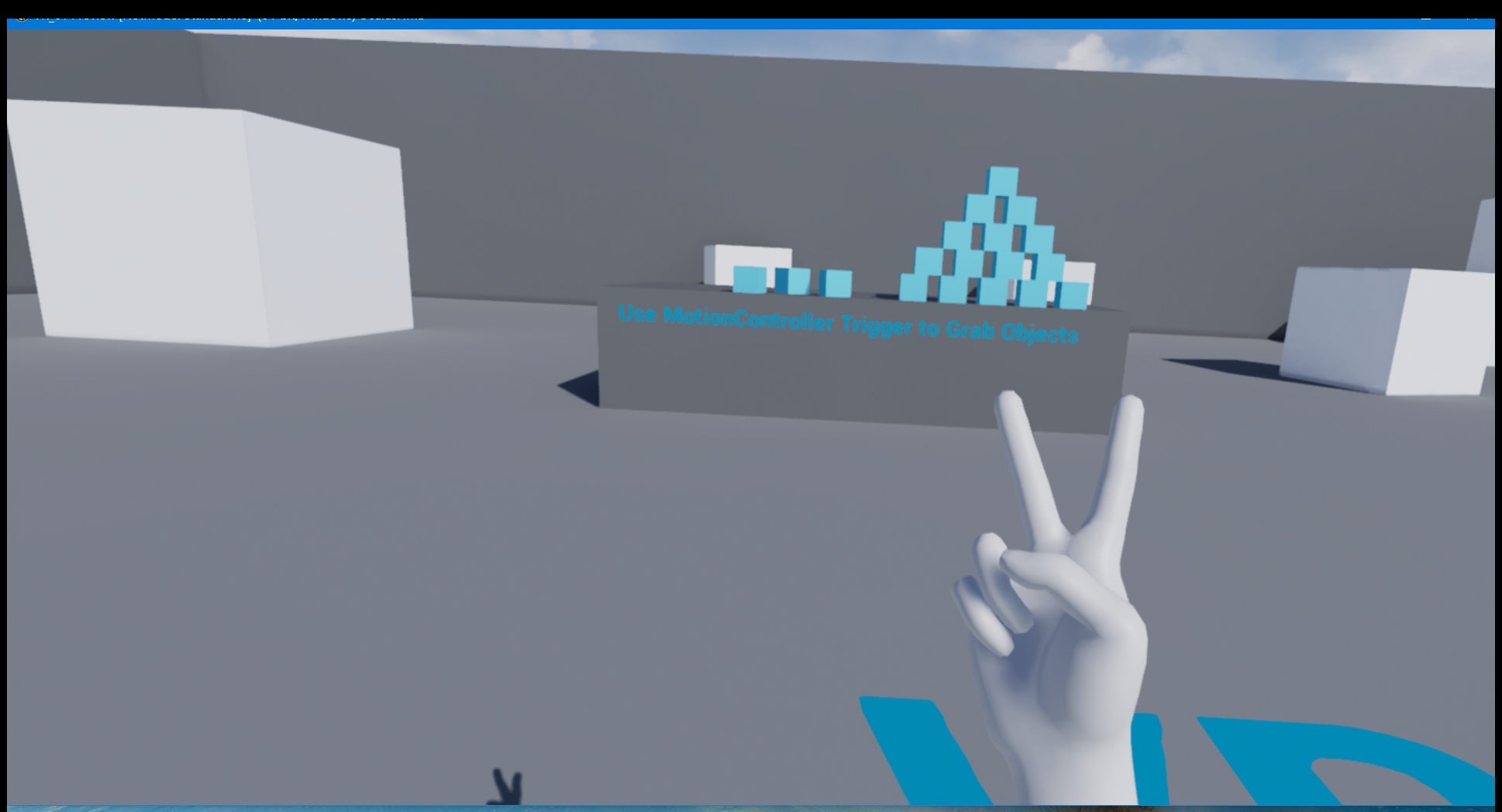

Our target players are people in hospice. So hand tracking would be useful if they can't or don't want to use motion controller. With hand tracking, you can just put your hand in the range of mo-cap cameras.

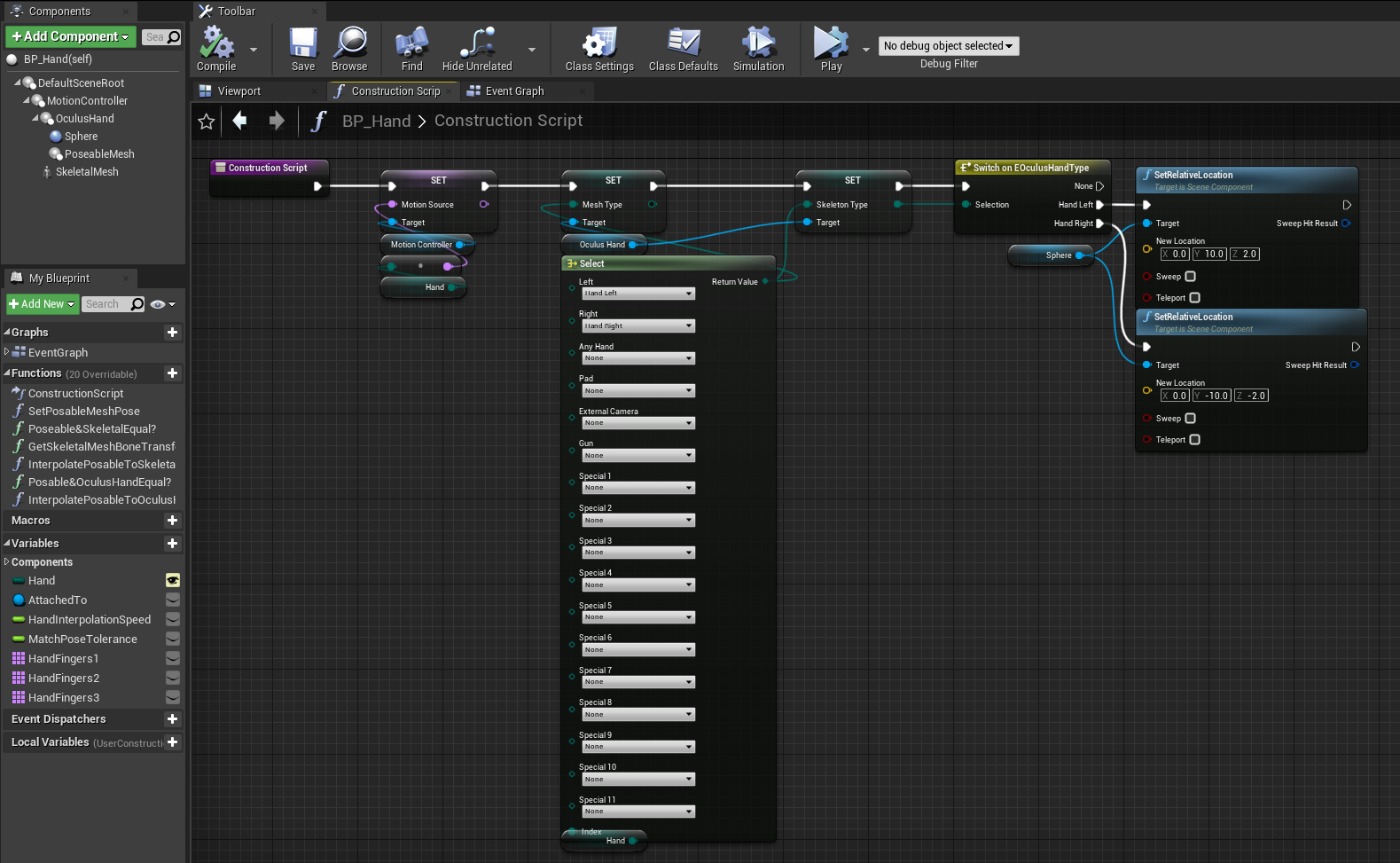

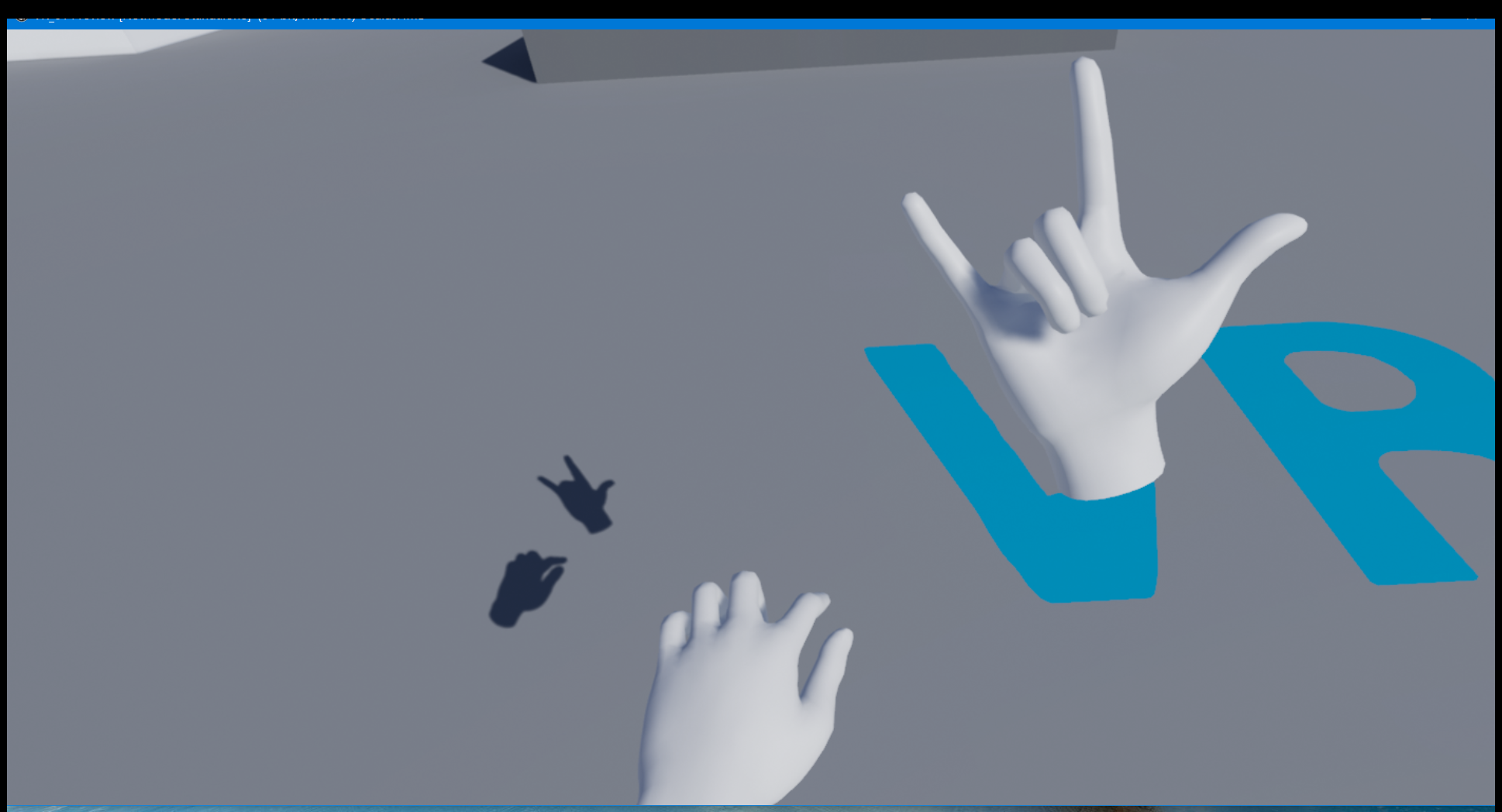

I built a blueprint for bare hand tracking (but without collision).

UE supports both hand tracking and motion controller mode. It can intelligently switch between the two modes, depending on whether the motion controller is actively using.

The hand tracking is very sensitive to light. So if the environment is too dark, it won’t work properly.

One main interaction in our VR experience is to open up a jar as a trigger of moving to next part. So to simulate jar open and close is the first step for this requirement.

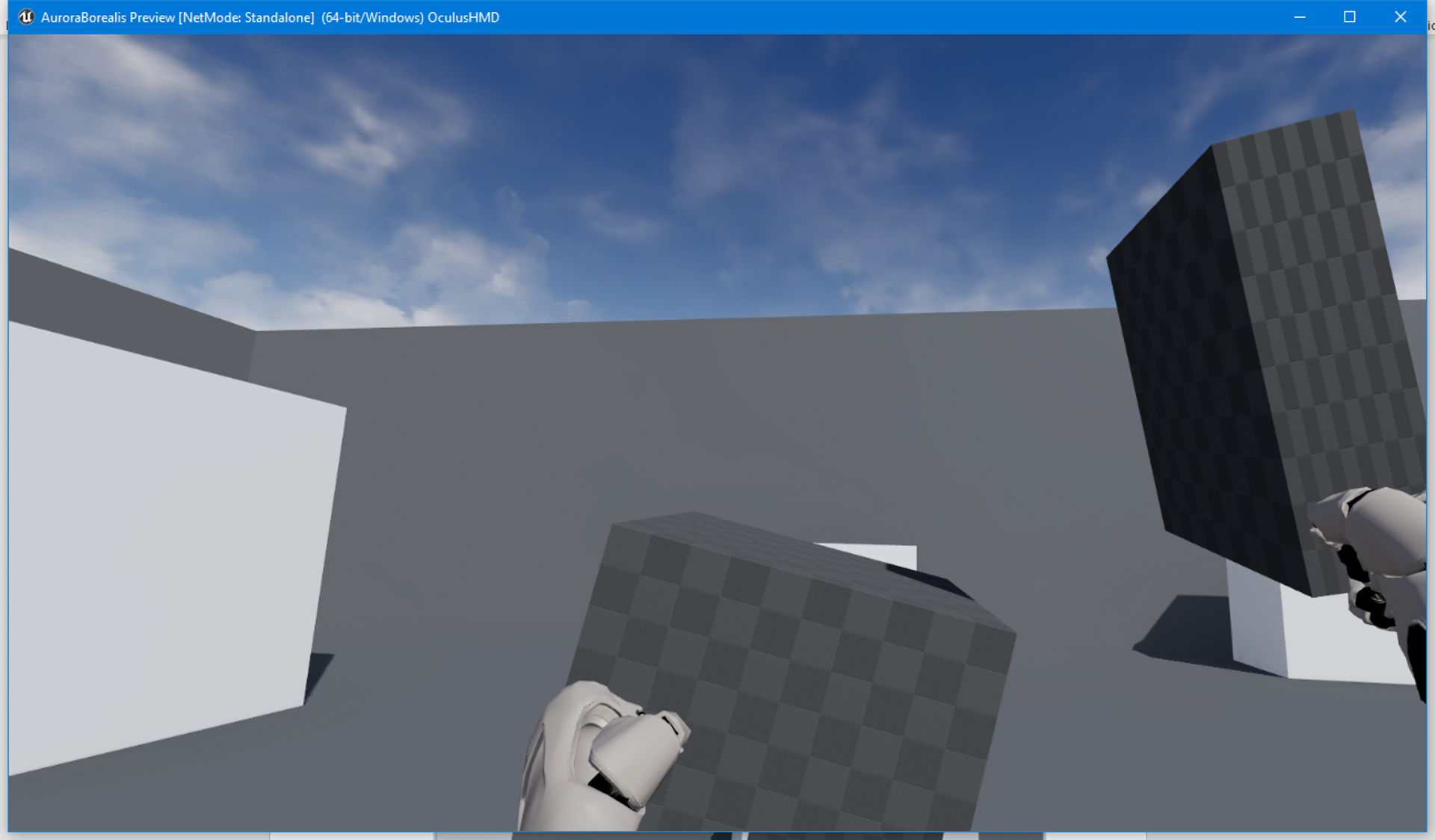

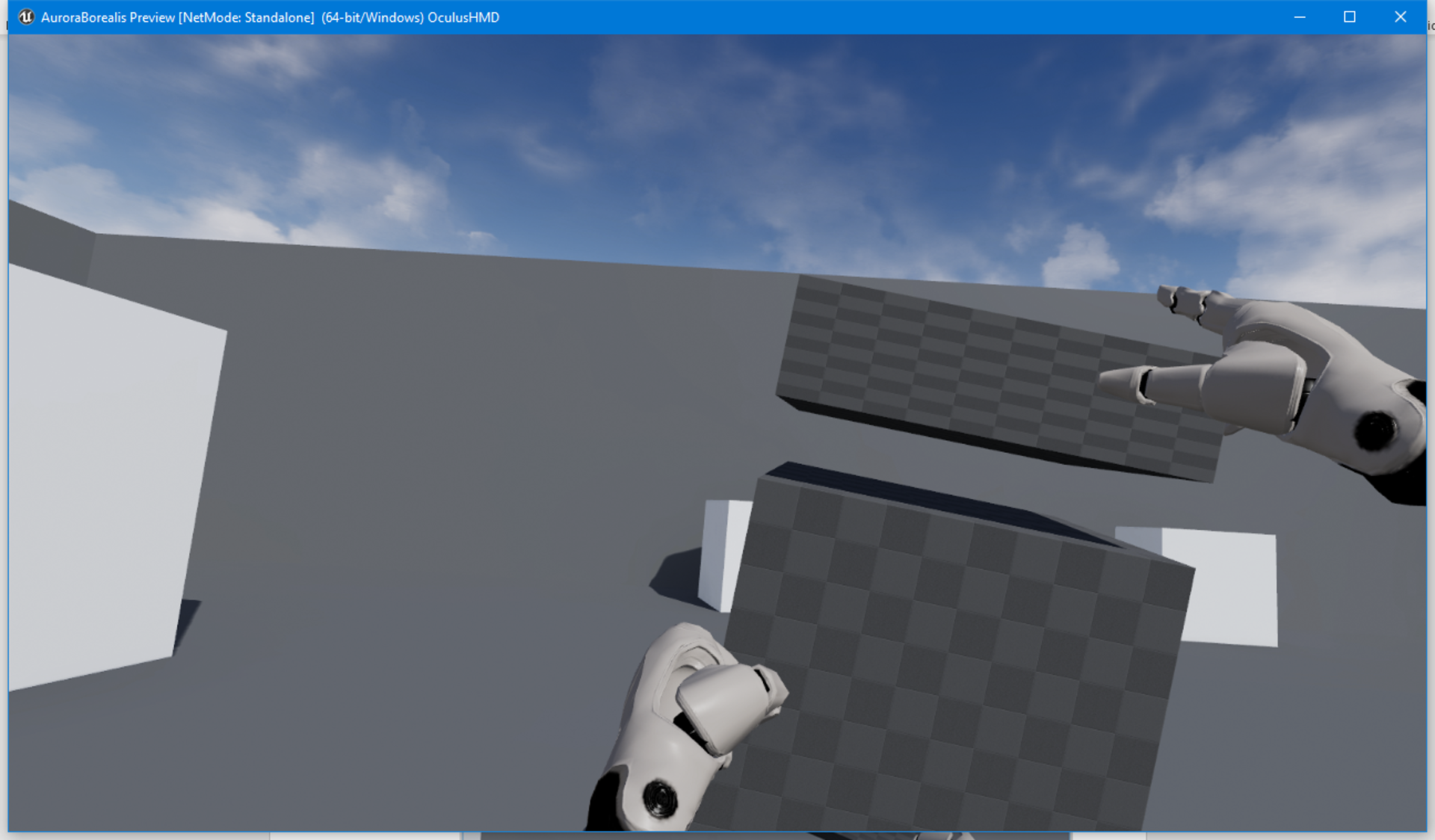

I simulated Jar body and Lid detachment and placing back interaction (using cubes as place holder, with motion controllers).

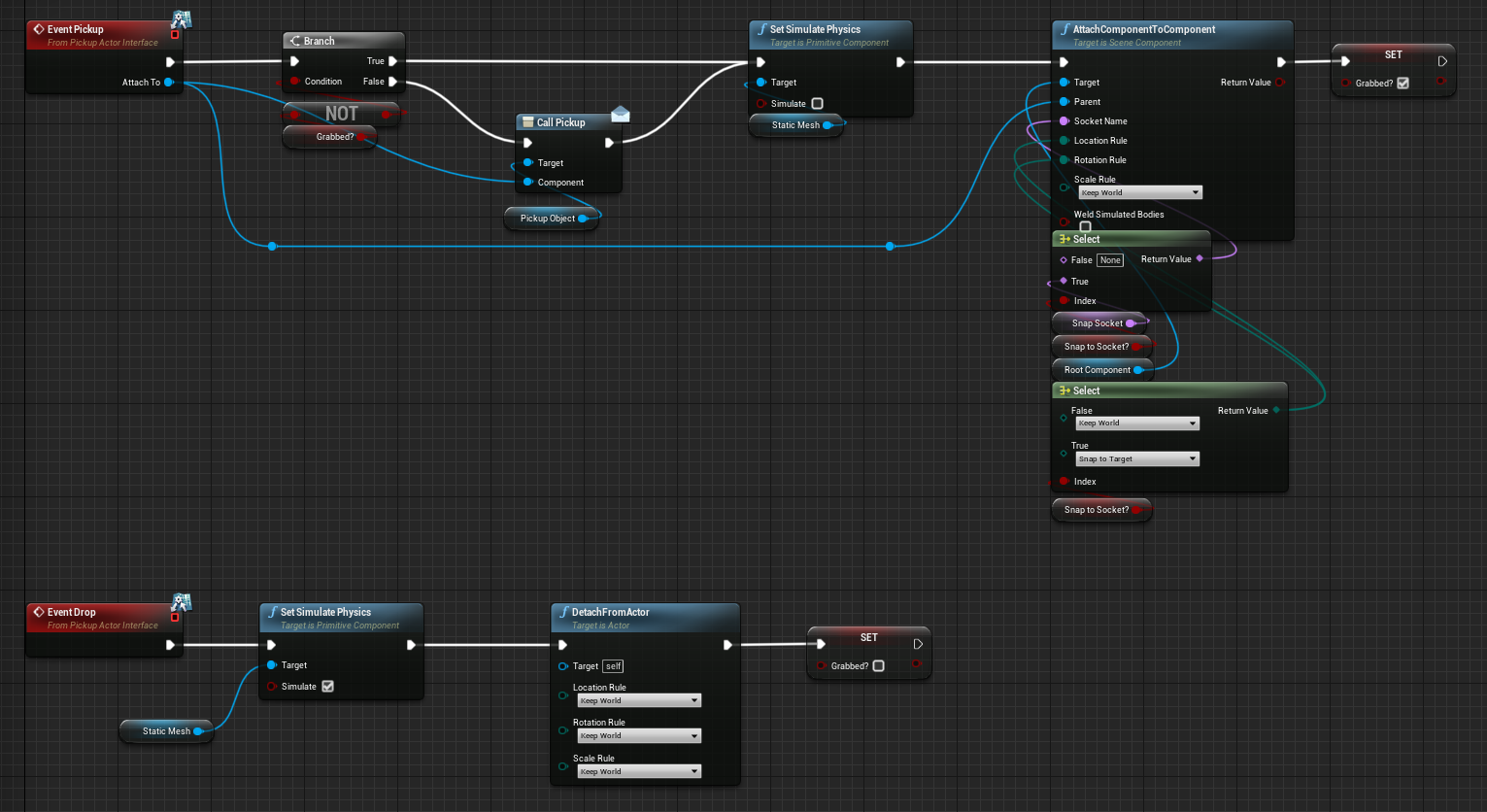

I created a Blueprint Interface and BPI functions, Pickup and Drop. These interfaces can be implemented in any object needed to be picked up.
In my case, I just implemented in both Jar Body and Lid actors.

We want to create the experience for player that breathe can affect the grass, making it swaying based on the facing direction of the player.

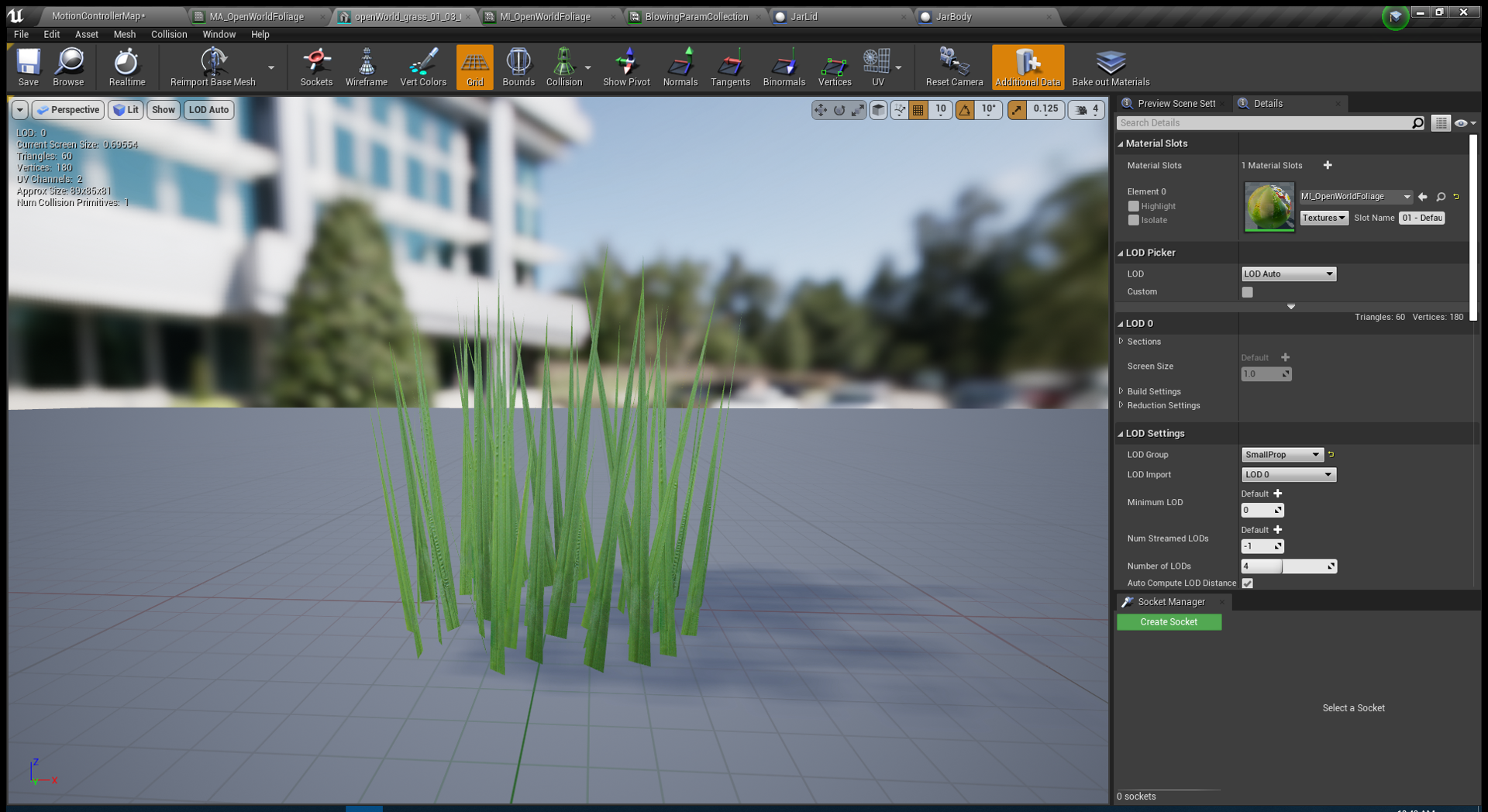

The grass model is just a static mesh. Instead of changing the position and rotation to the model, using material would be a good choice, since physical collision with the grass is not needed in this project.

I implemented grass swaying effect in material blueprint using the World Position Offset node in Grass Material BP.

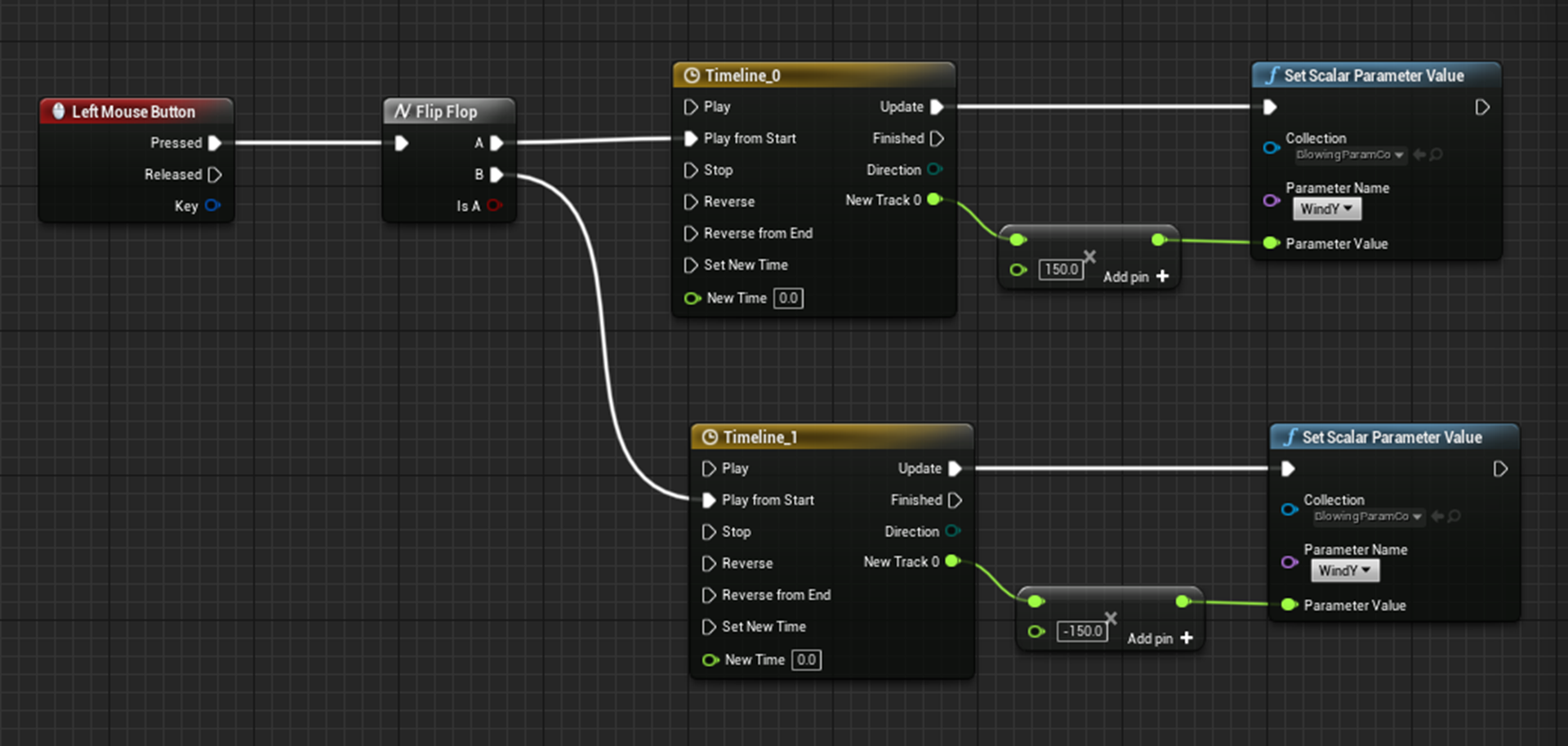

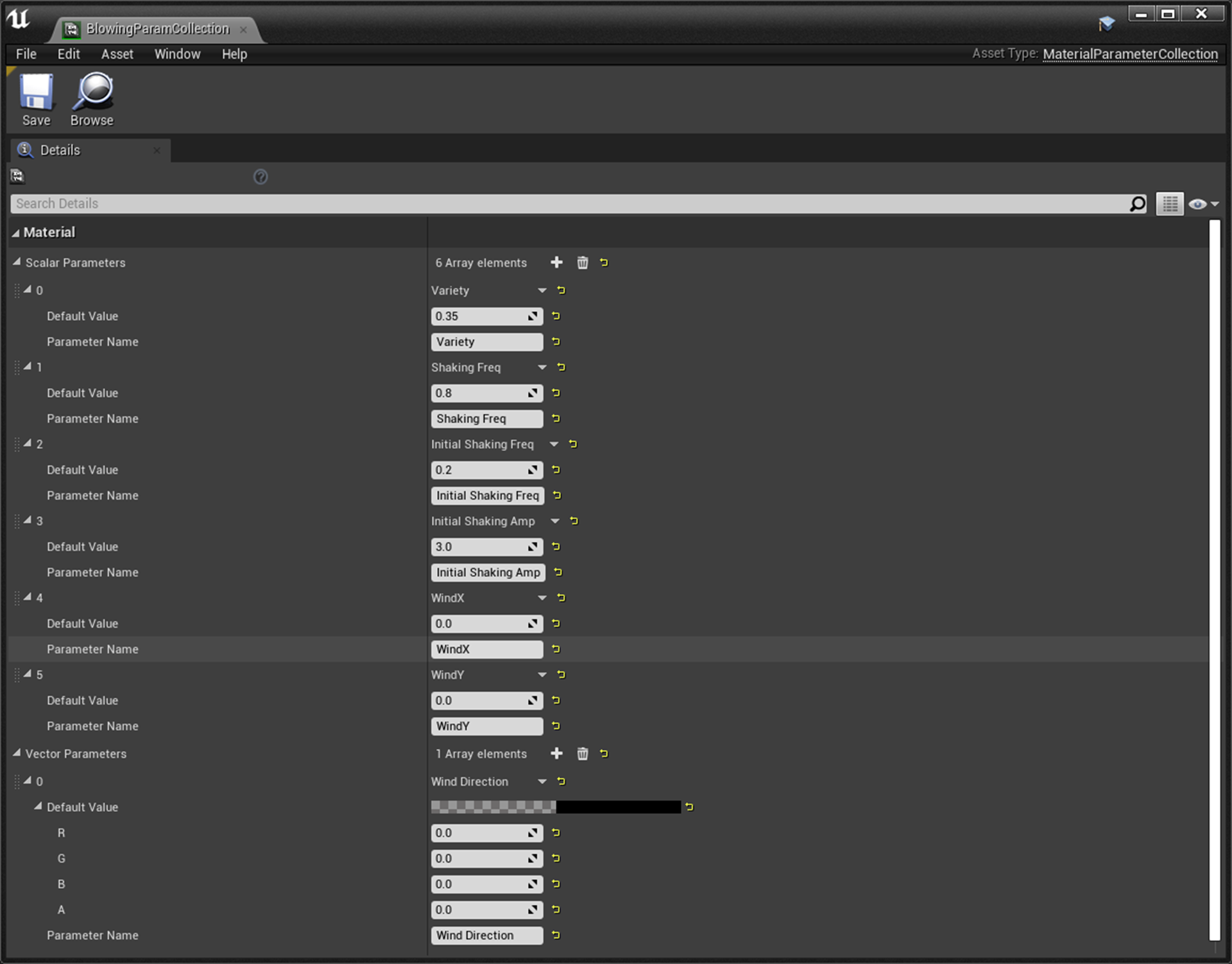

In Grass BP, I can easily use "Set Parameter Value" node to adjust those parameters I created before.

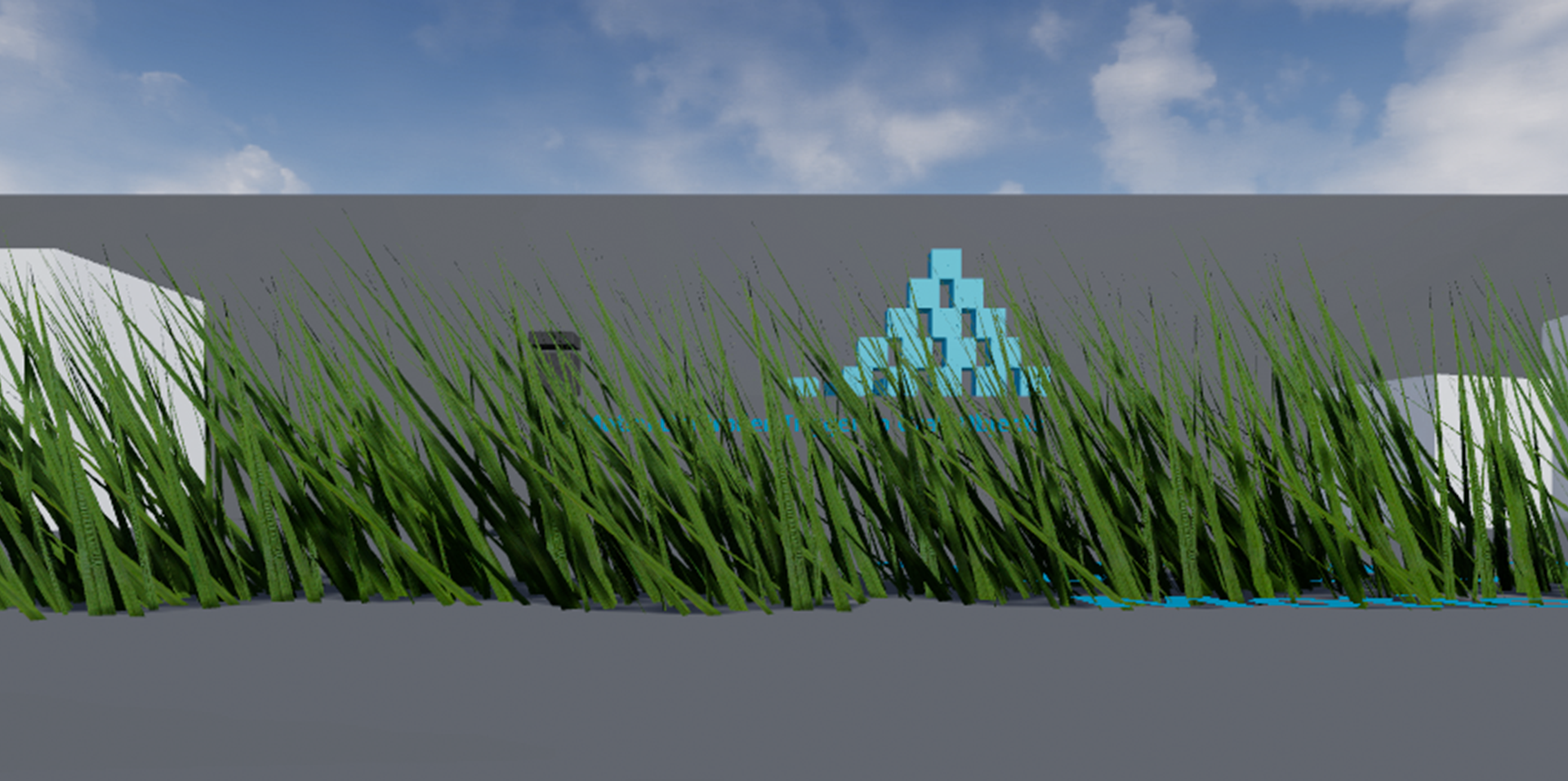

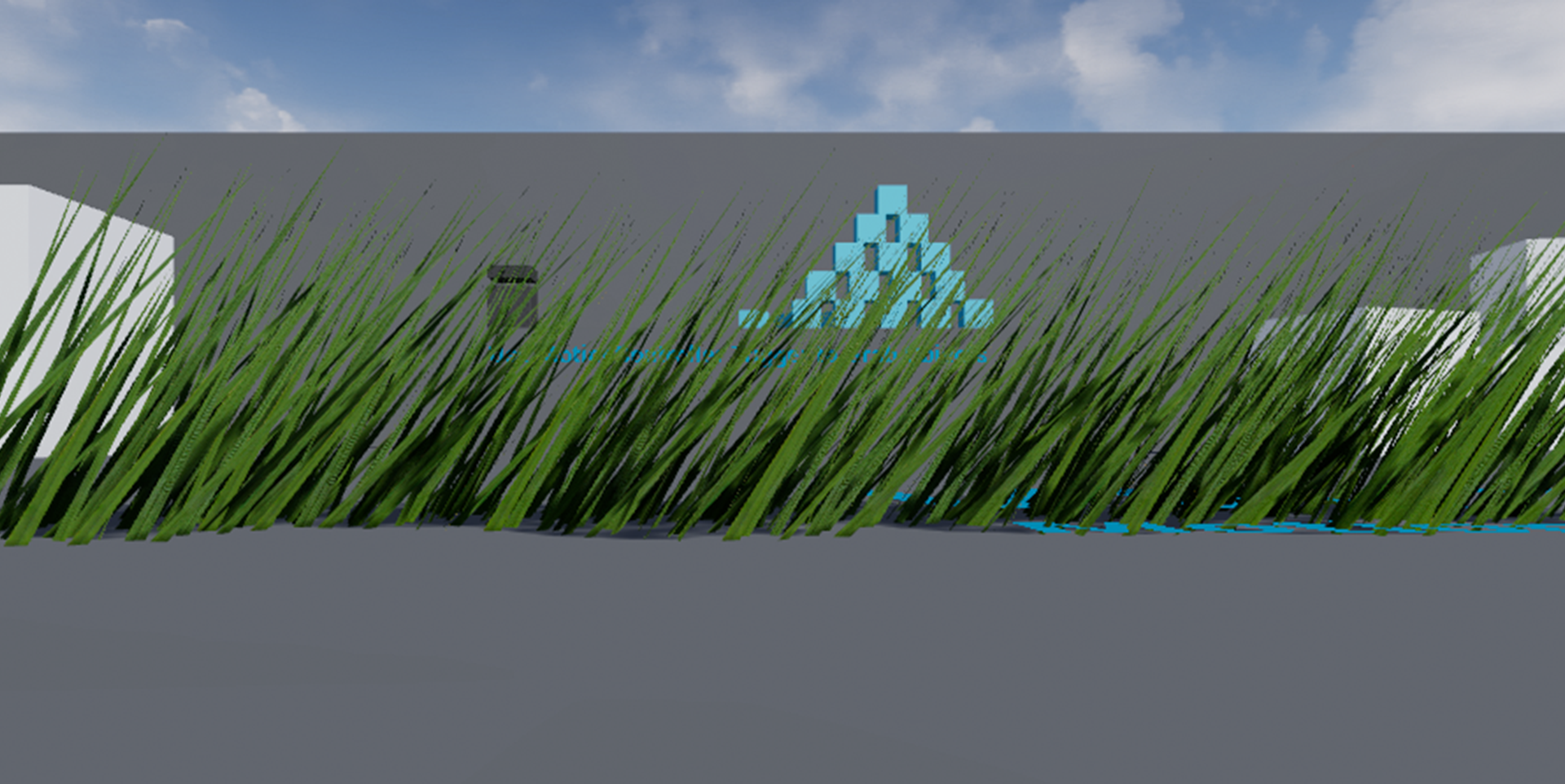

The final effect is like this:

New design requirement is that the player can choose to:

     ▪   Take the jar (body) with one hand and then open it (lid) with the other hand.
     ▪   Just open the lid directly with one hand.

Our artists have created the jar model and material. Based on "Feature 02 - Collision and Detachment", now I can use the real assets to replace those placeholders.

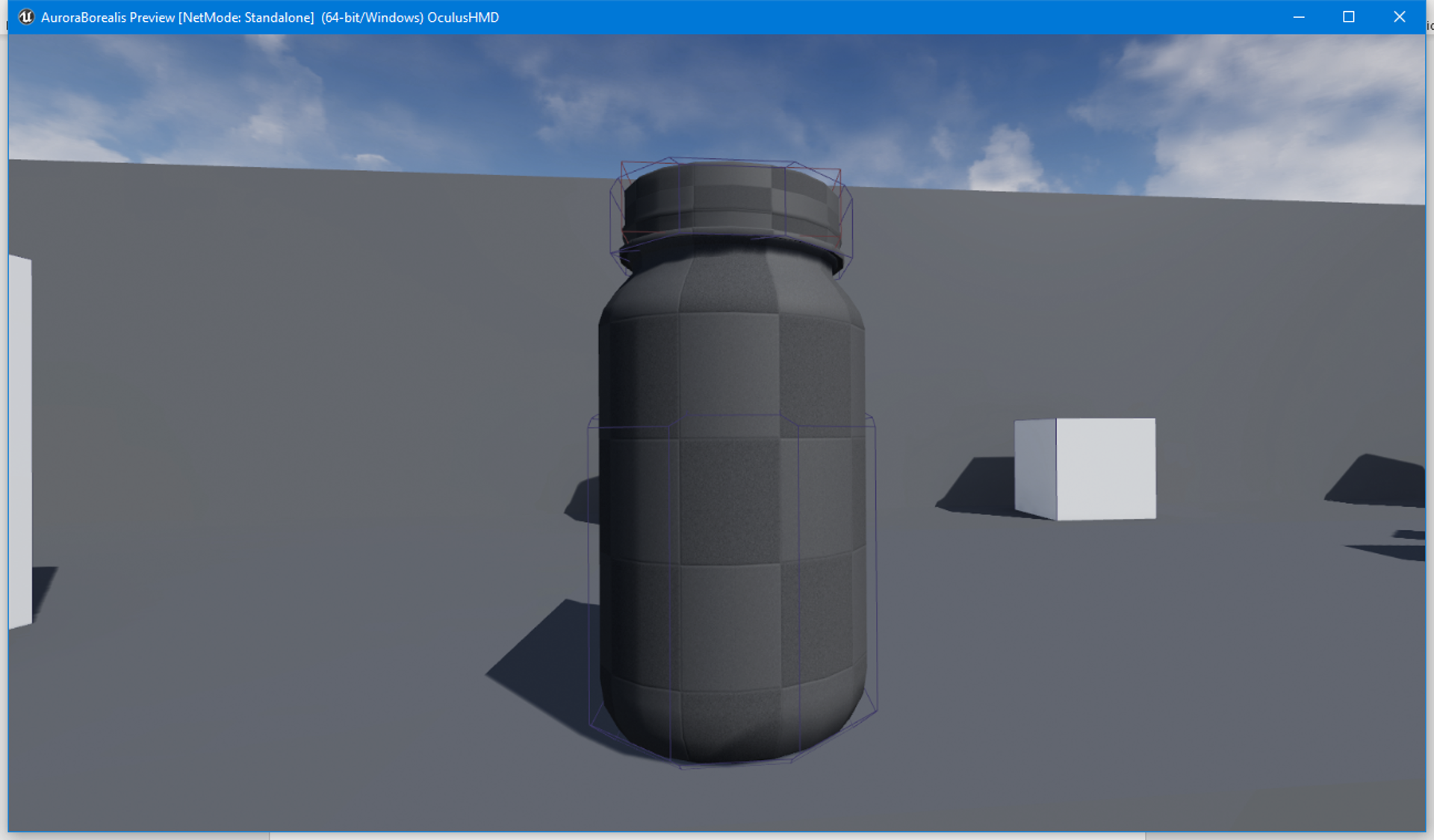

But there will be a little collision issue for models, when you want to just open the lid with one hand.

I implemented Jar interaction BP with Jar static meshes and materials in Lumino scene.

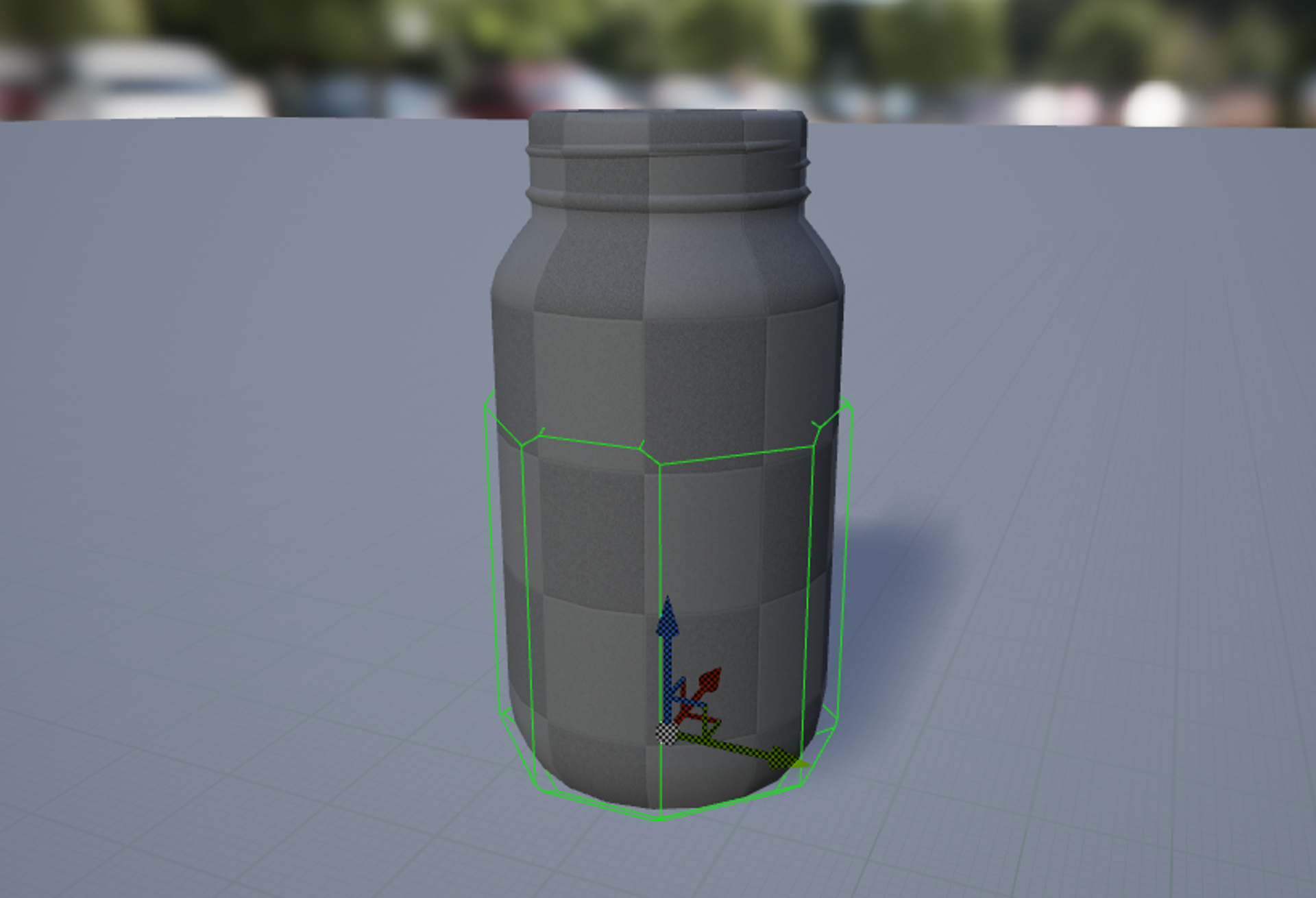

I refined relative locations and collision sizes to have accurate interactions. So it will be less likely to get a missing grab or wrong grab. Also, players can be optional to take the jar body to open the lid.

Until now, the hand interactions are tested using motion controllers.
By default, the motion controller can detect hand open and close, but not for hand tracking.
So we need to build our own functions to detect the current state of the hand is "Grab" or "Release".

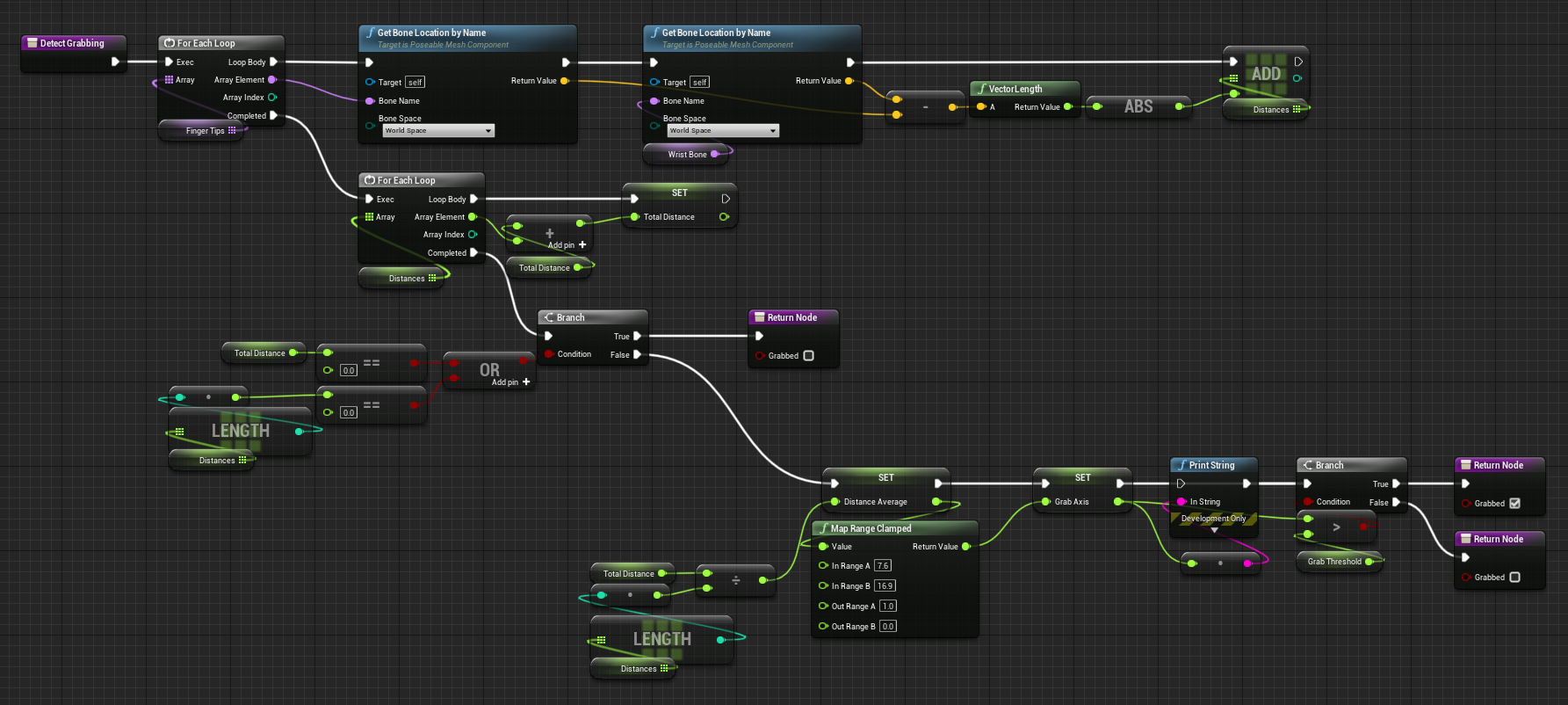

I made an algorithm for detecting hand close and open based on hand tracking.

The algorithm is to calculate the average distances of all finger tips to the root stub of the hand. Then mapped into the range from 0 to 1.

I printed the value to screen to see the changing value of Detecting Grabbing Algorithm when the state of hand changed from release to grab and from grab to release.
After that, I used a threshold variable to precisely define the state of grabbing or releasing.

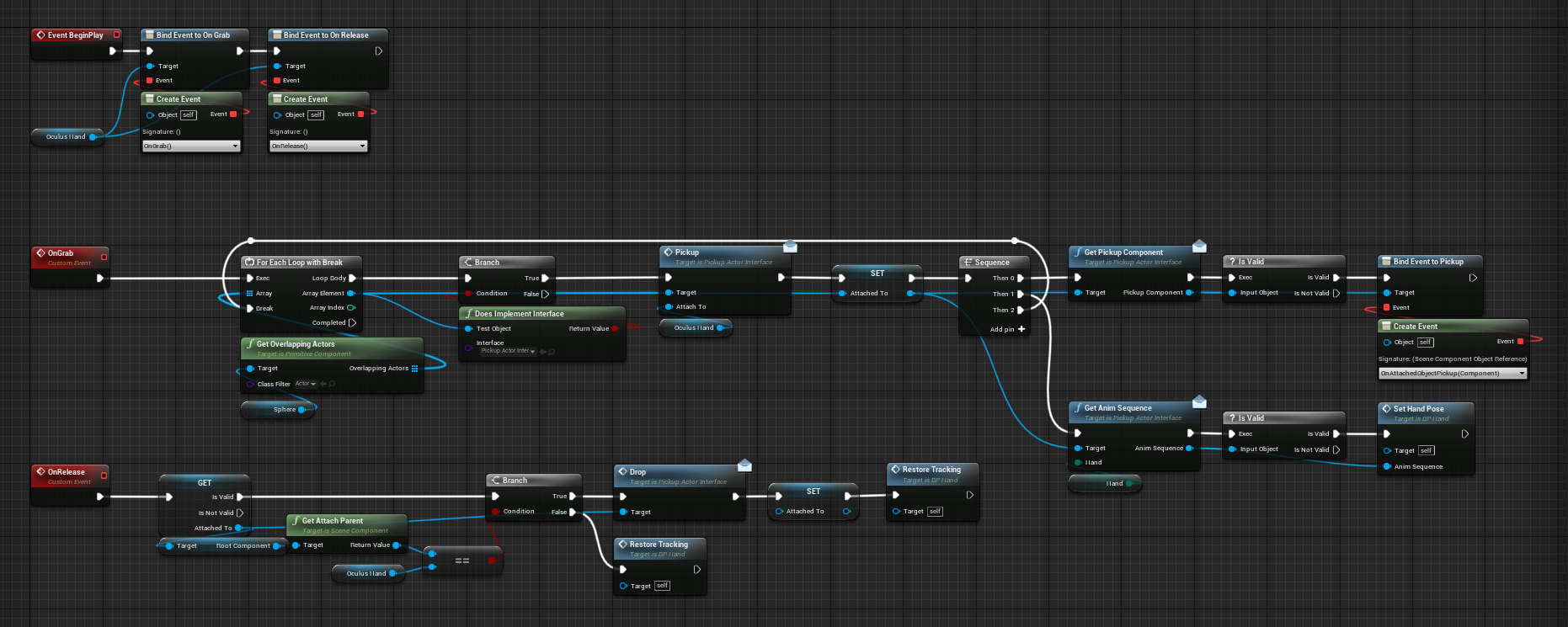

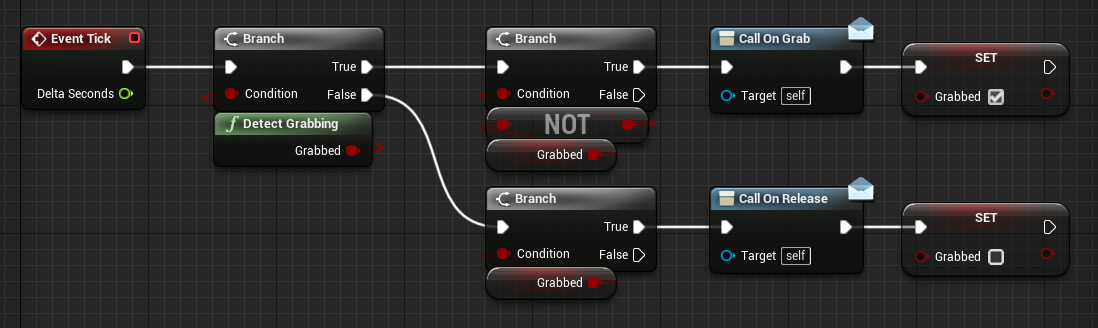

In Hand BP, OnGrab and OnRelease are two events which are bound to BPC Hand with the same name OnGrab and OnRelease.

They will be ticked in Hand BPC to detect the state of grabbing or releasing.

The hand tracking grabbing feature is like this:

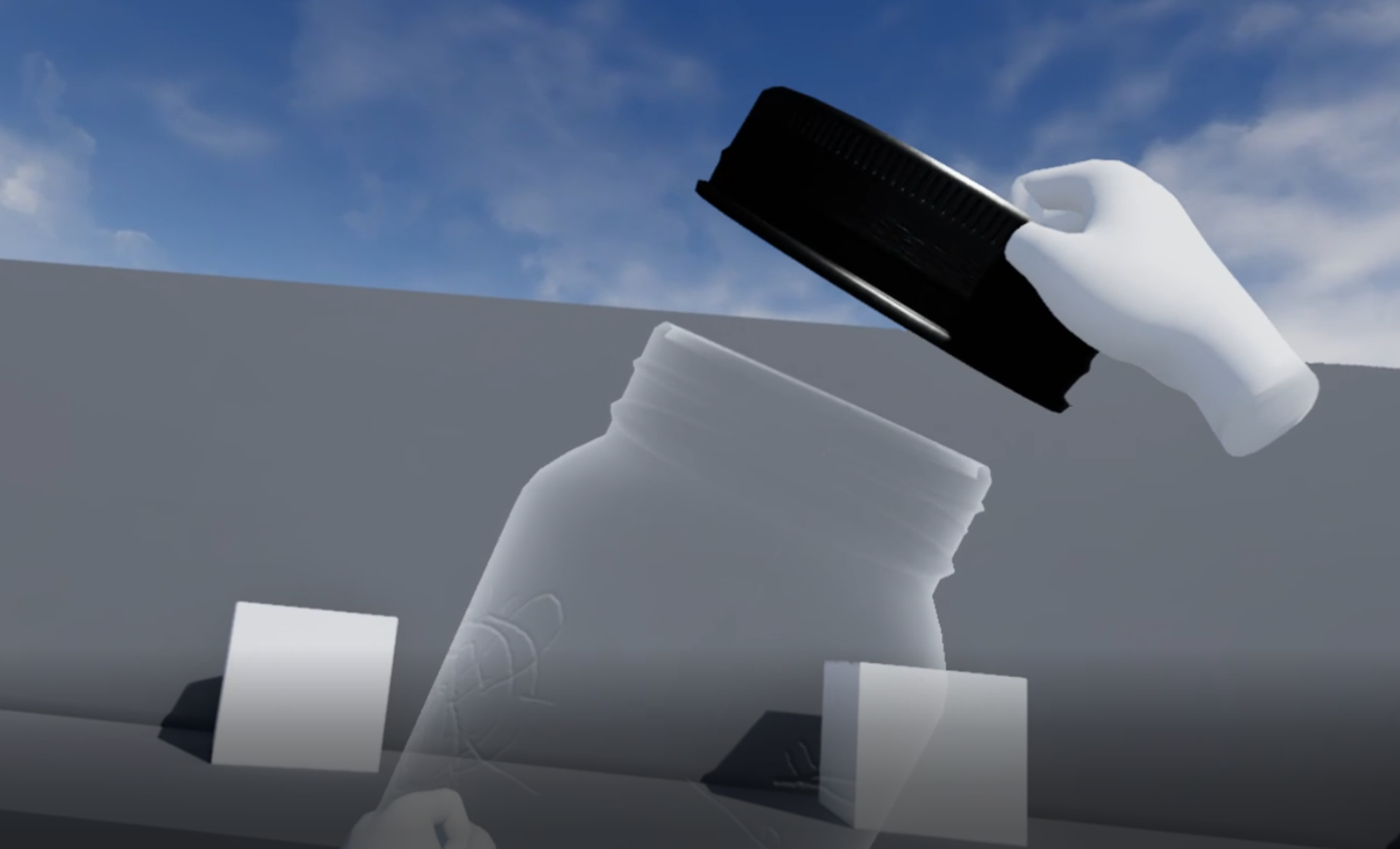

To make the jar interaction more realistic, we want to when the player is holding the jar body or lid, the hand pose is like really holding the object, instead of overlapping the object.

My process of adding animations for hand poses:

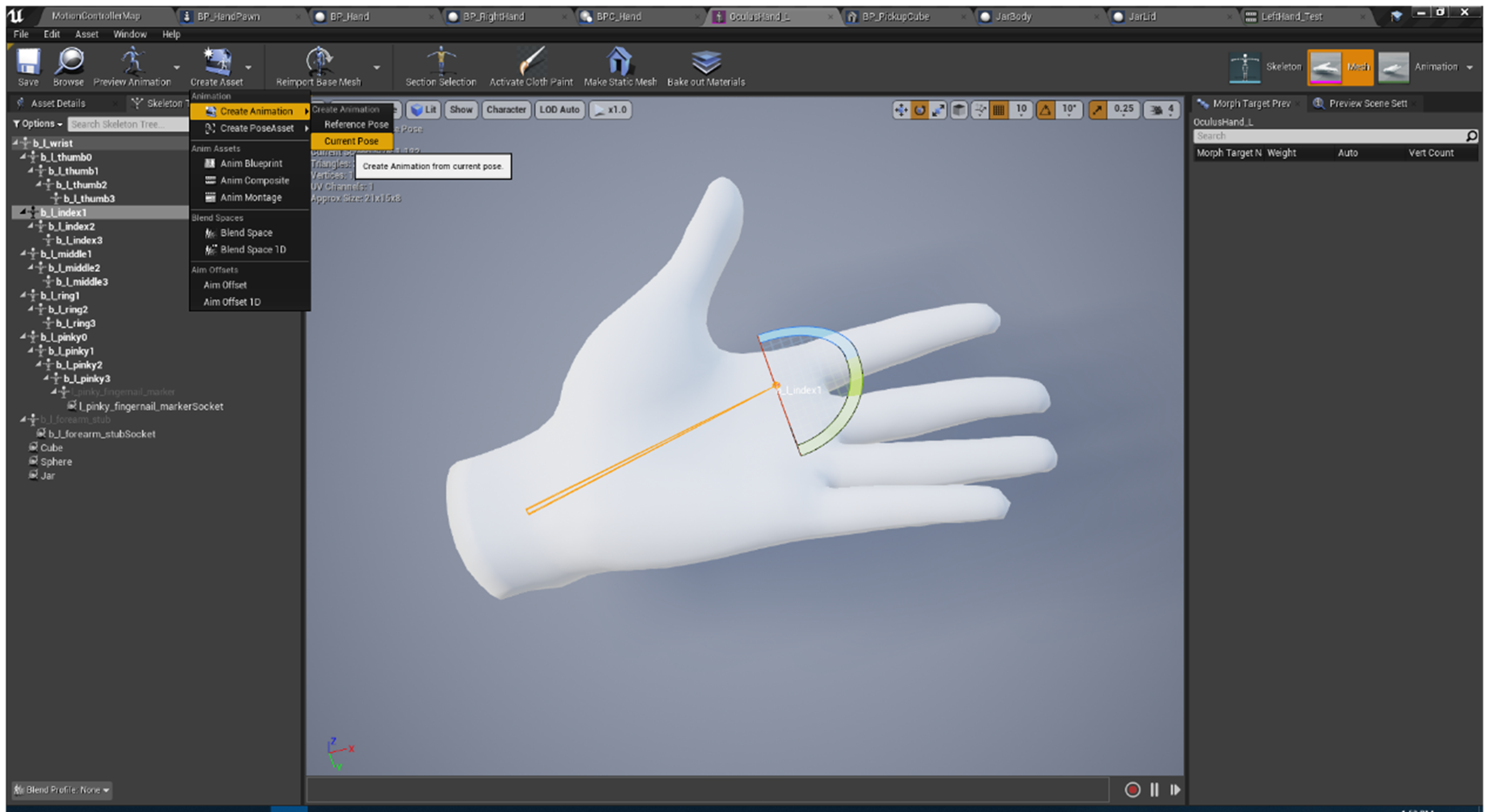

     1.   In the Hand Skeletal Mesh, create new poses.

     2.   Create new socket for a certain pick up actor.
     3.   Add preview asset, tweak the relative location, rotation, and scale for the hand and the pick-up object.

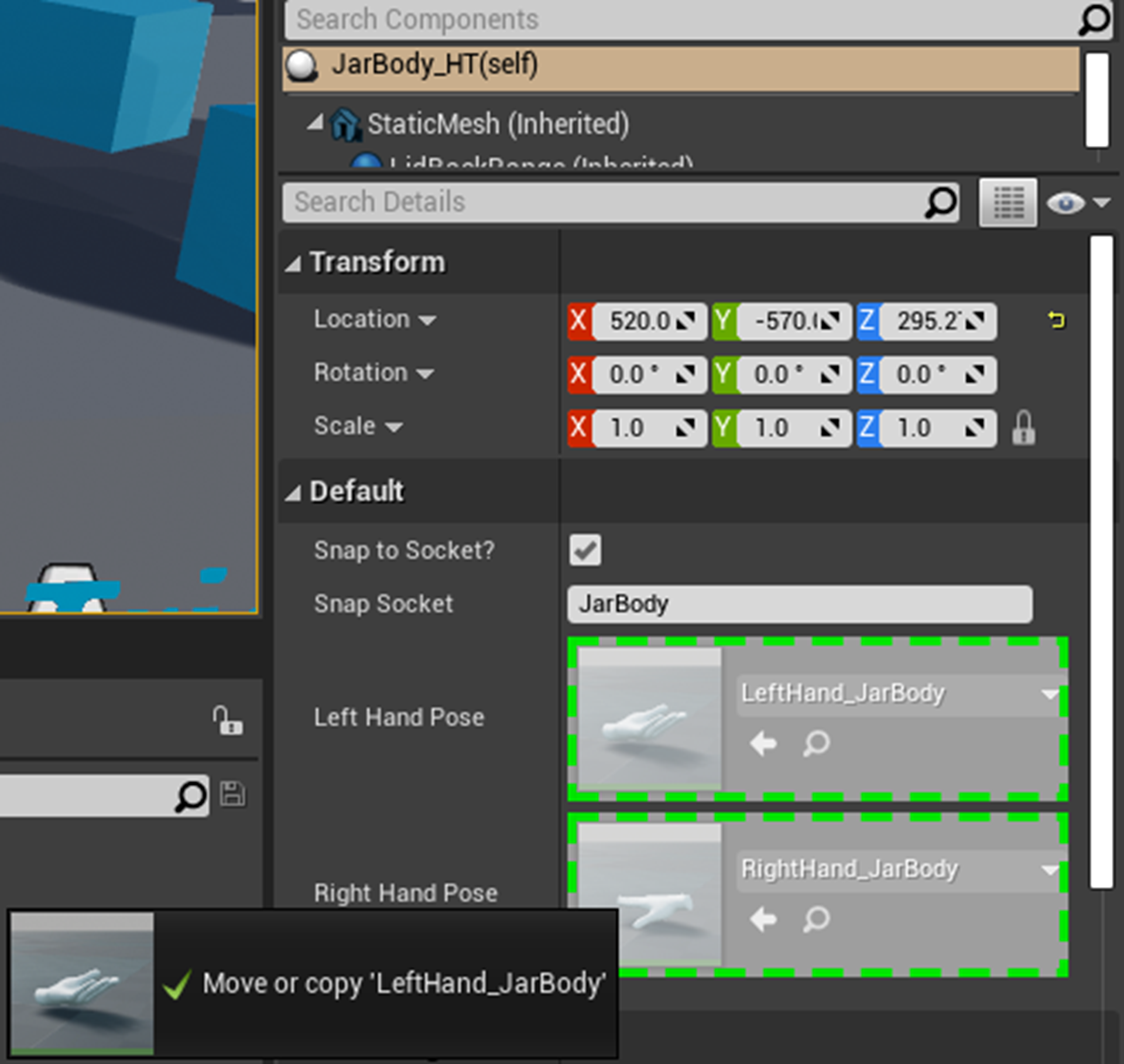

     4.   Apply new animation sequence for hand pose to the pick-up actor blueprint.

The idea is to create 2 hand static meshes. When the state is Grabbing, show grabbing hand pose. When the state is Releasing, show releasing hand pose.

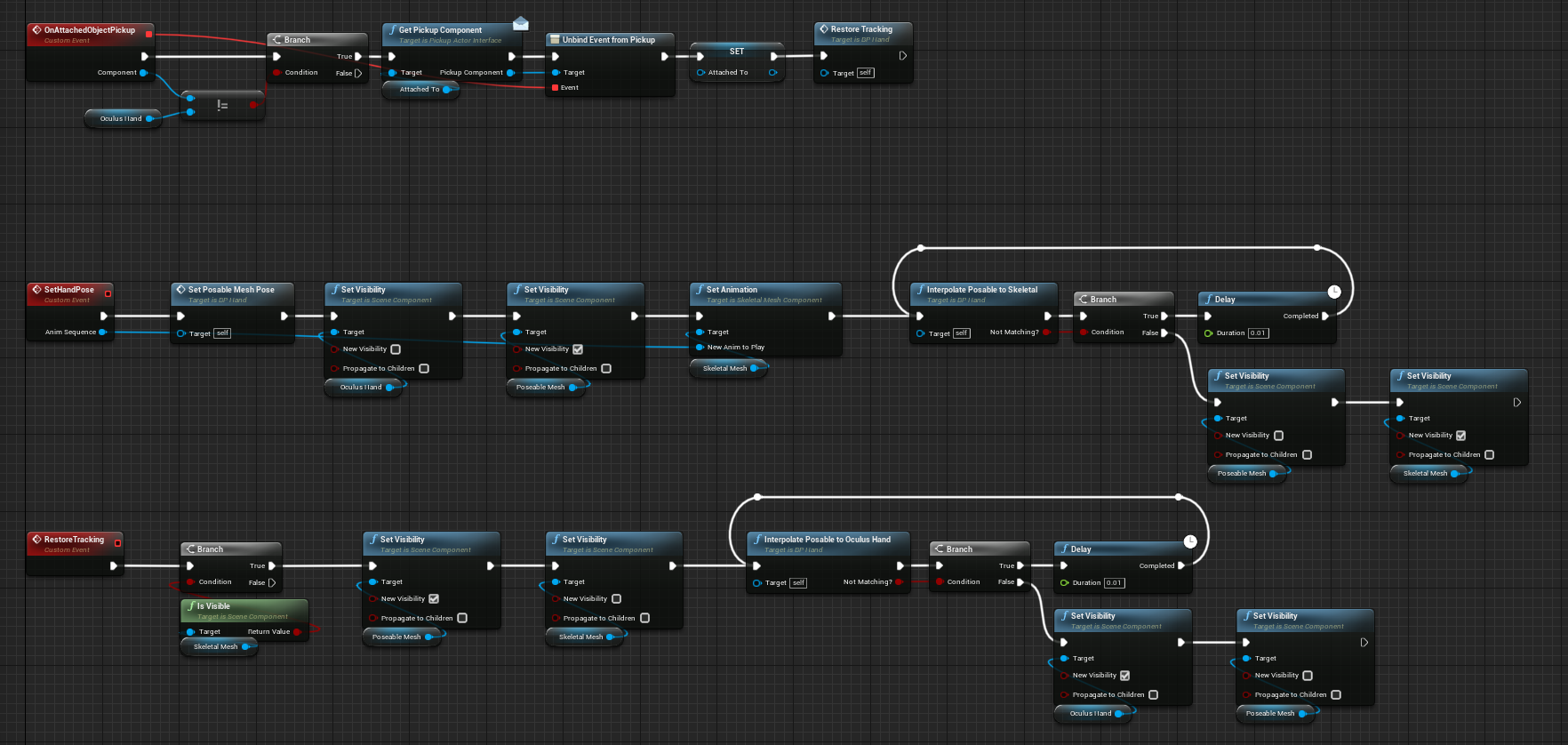

In Hand BP, event SetHandPose is for showing Poseable Mesh and hiding original Skeleton Mesh, while event RestoreTracking is for the opposite functions.

The final effect is like this:

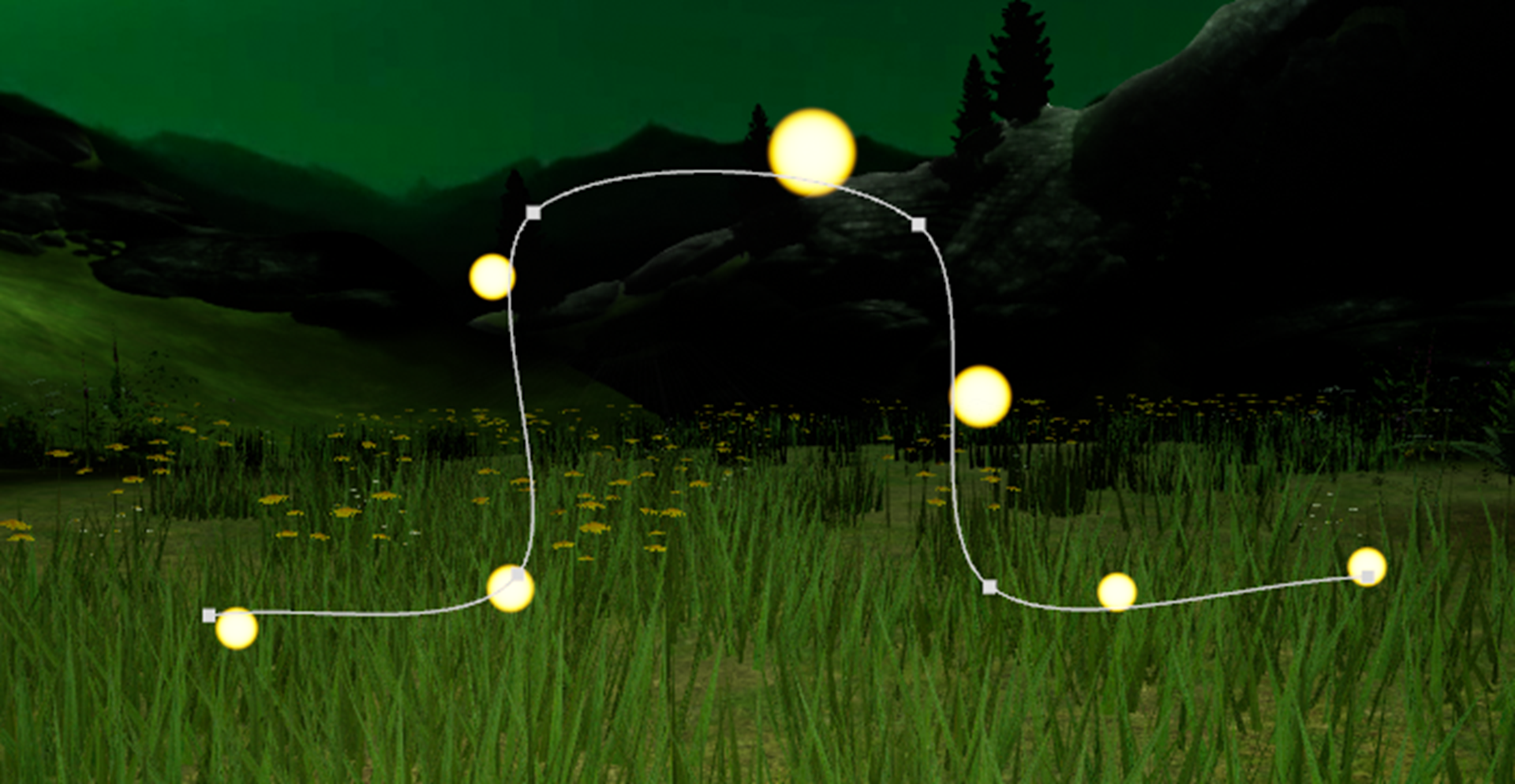

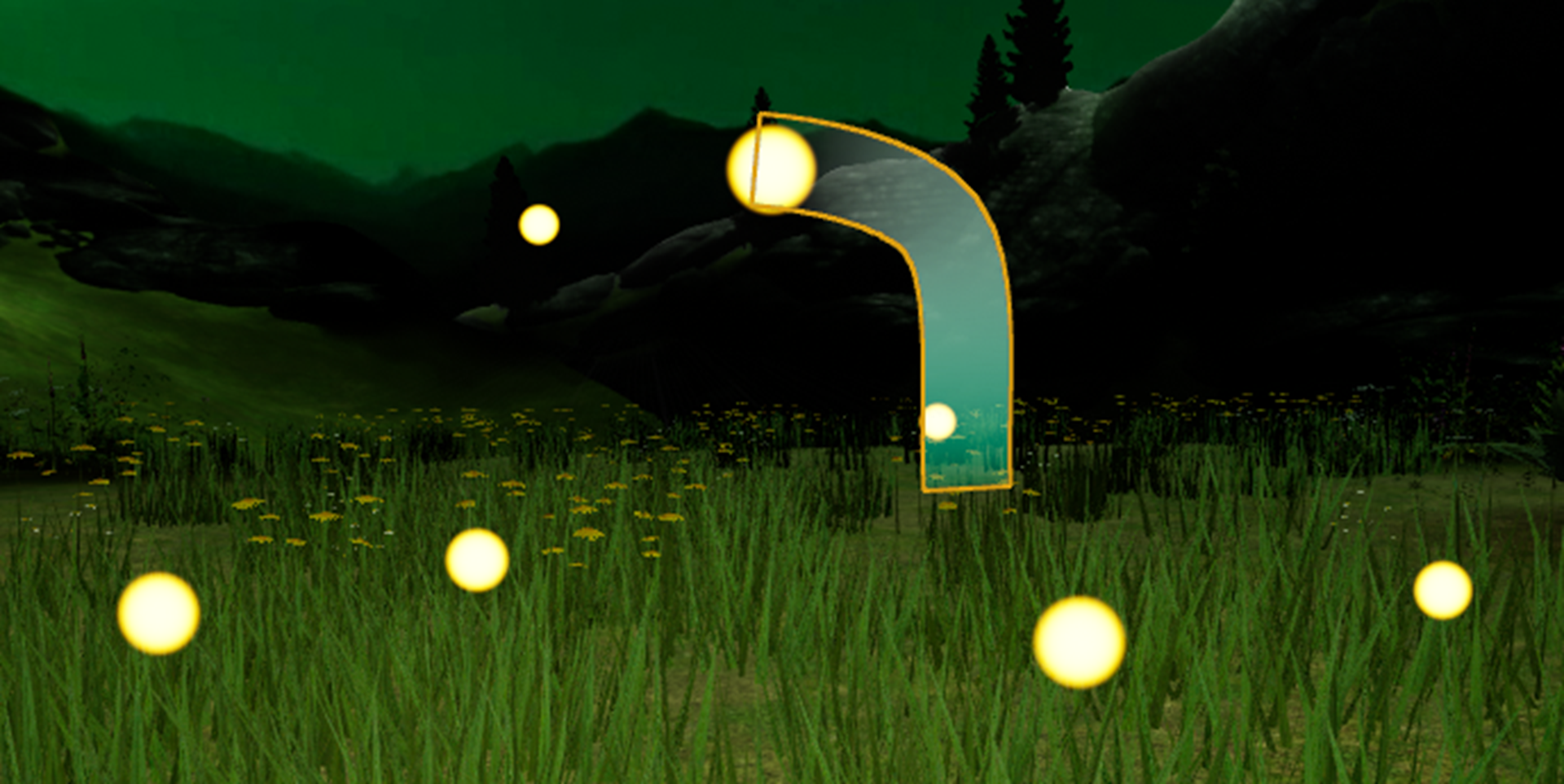

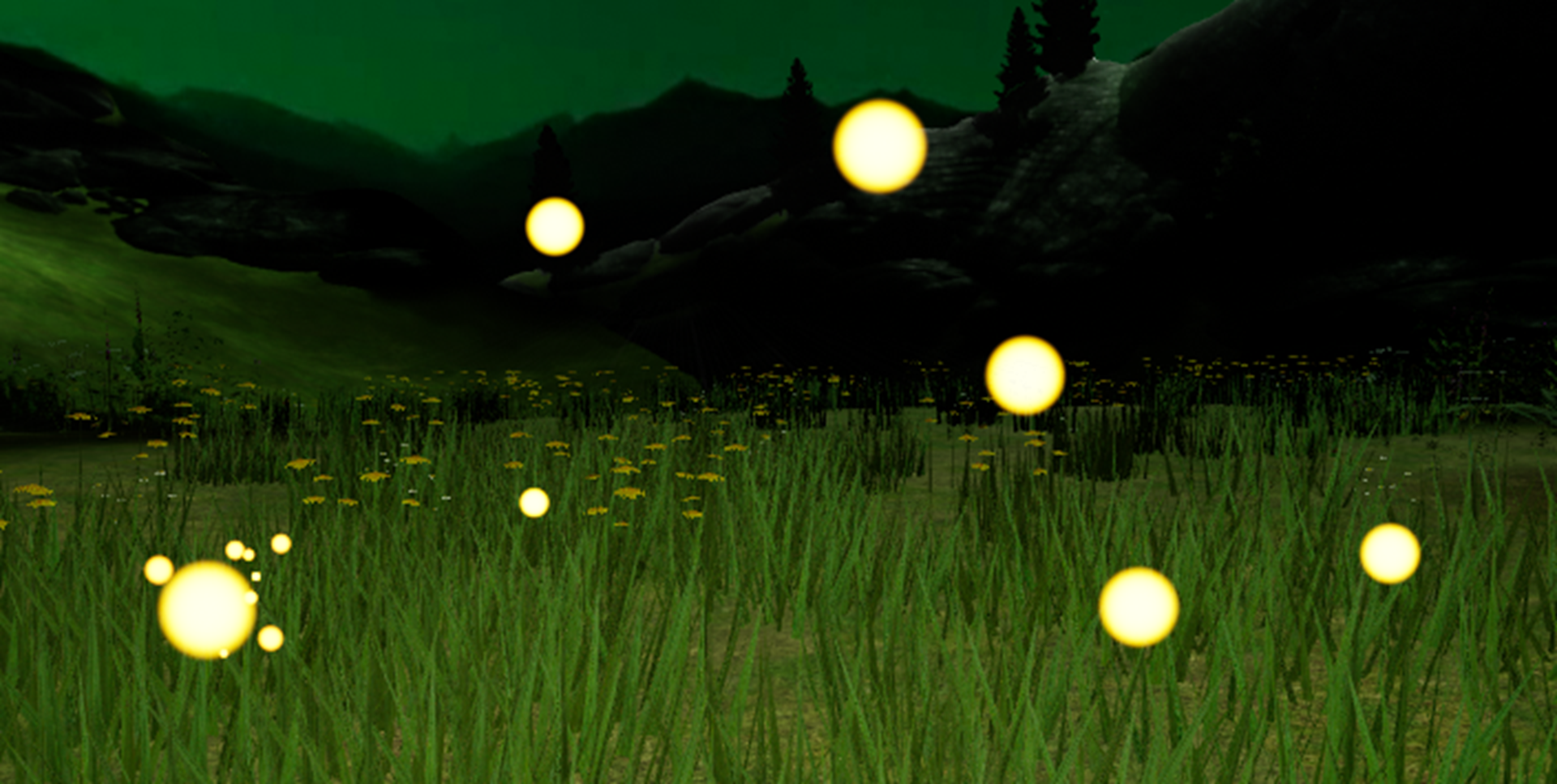

Another core interaction is firefly touching. Fireflies are in the trail of a line. The player can touch them along the trail, like doing tai-chi movements. Every touch will trigger a sound effect (piano key sound). As a whole, they are forming a melody.

The fireflies in the line will appear in sequence with delays.

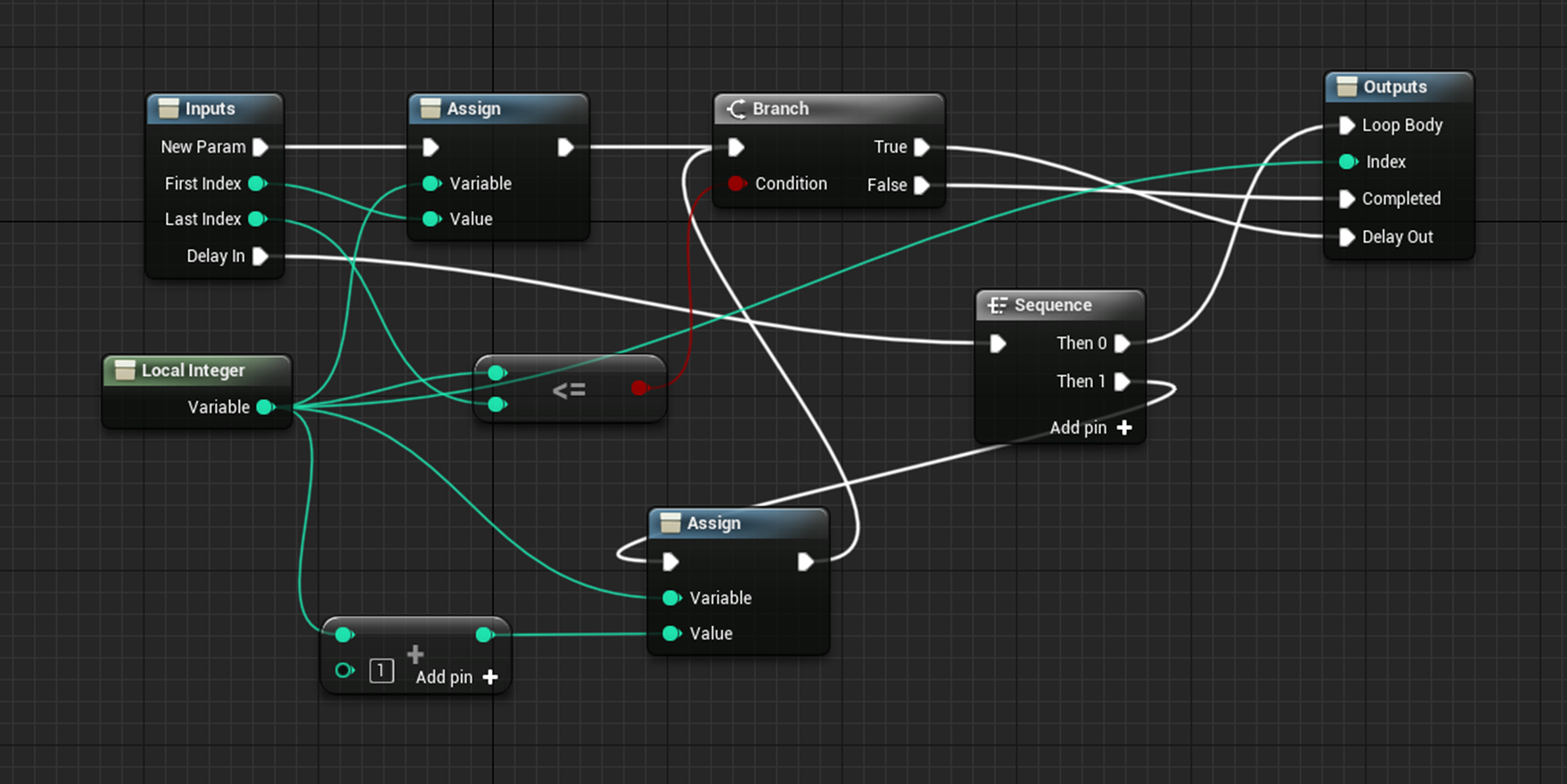

But by default, Unreal for-loop doesn't support delay. So I created a macro for-loop with delay.

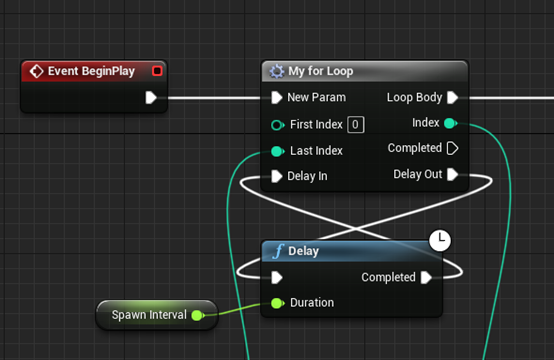

With the customized delay for-loop, it's easy to spawn fireflies in sequence and then spawn the trail along the firefly spline in Pathline BP.
I bound a custom event of destroying all fireflies to OnDestroyed of the actor in order to control the lifetime of the firefly group after the player has touched all fireflies in group.

Along the experience, voice-over guides the player to key events and interactions.

After talking with our sound designer, I proposed to merge some scripts into one, because they are always playing together in sequence. This will make the overall voice-over system simpler.

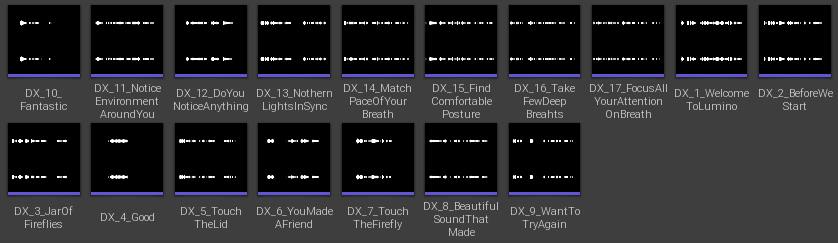

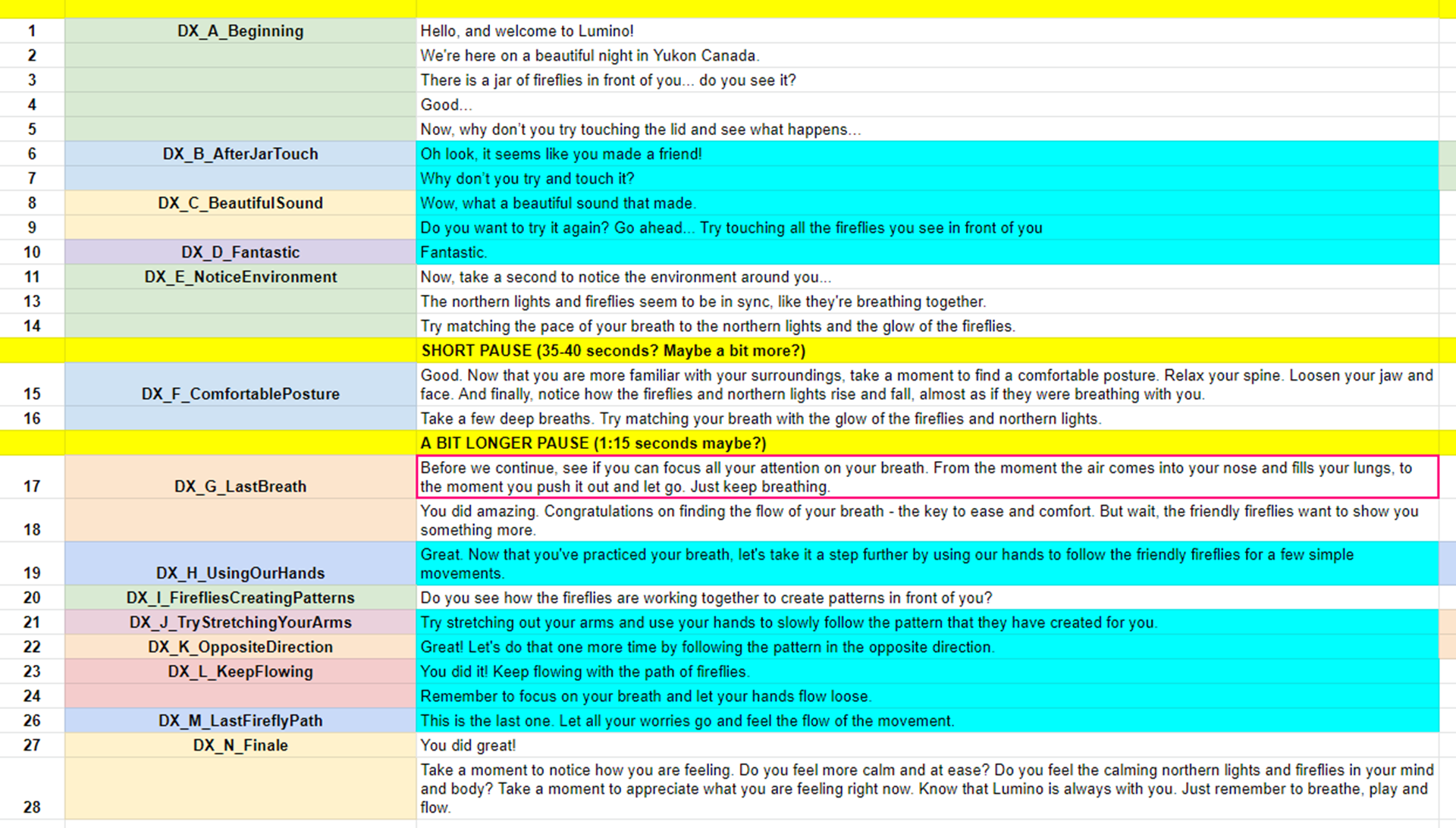

I discussed with sound designer again about naming convention. We used "DX_number_keywords" to name all sound waves. Before that, it's confusing to name files with what will play after.

We used the first prompt of opening the jar to determine whether the player could interact with the game or not, and had 2 versions of the sequence of the game. If the player doesn't interact, the player will no longer be prompted to reach out and touch fireflies, so it adapts to the ability of the patient.

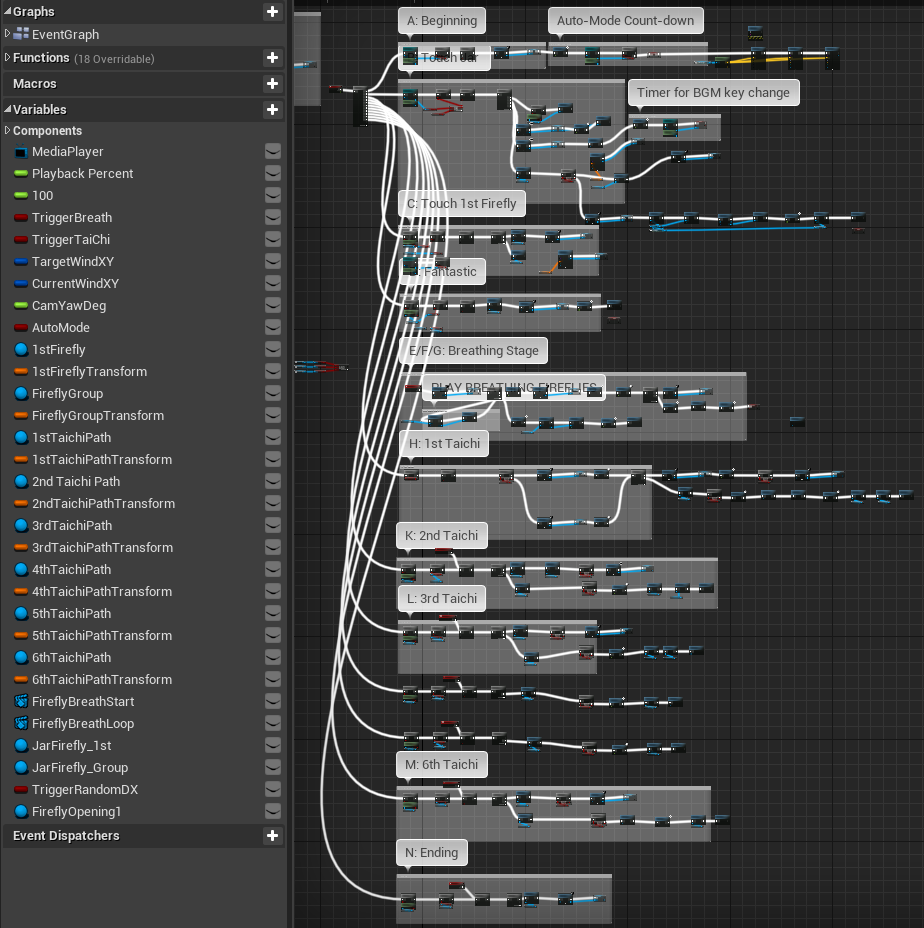

The overall voice-over scripts as well as interaction events are organized in sequence like this:

▪   It’s always better to test the technical process beforehand. This is the number one key takeaway from the perspective of developers in the VR project.

▪   Planning ahead and making a list in priority order are also very important. With limited amount of people and time, developing should have a specific guide, and should be updated on time.

▪   After testing for one key technical point, the feedback and adjustment for the original design is very needed. Because not always can we get positive feedback.

▪   I learned that in the term of development, the framework is equal important or even more important than the content that will fill in later. That’s why we need placeholders along the way.

▪   The power of collaboration is very beyond expectation. Each student in my team has individual talent. By making the use of everyone's ability, we can finally deliver a decent project. Even though with the executable hand tracking problem, I think we all did great job. The development experience will be an impressive piece of memory in my life.
